Insta360 Mic Air (1 TX + 1 RX)
- Mic Air is a compact wireless microphone designed for creators who value mobility, high sound quality, and effortless operation. With its ultra-lightweight design (just 7.9 g)
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

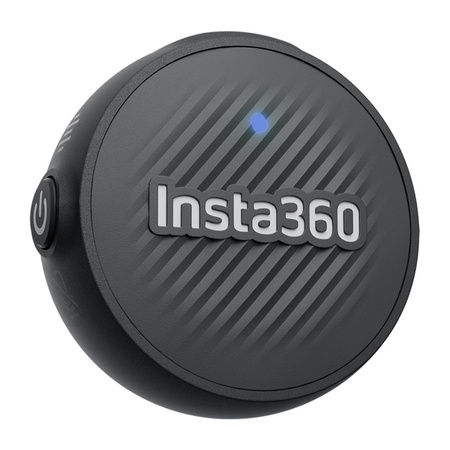

Mic Air
Mic Air is a compact wireless microphone designed for creators who value mobility, high sound quality, and effortless operation. With its ultra-lightweight design (just 7.9 g), Mic Air remains almost invisible while recording, keeping the full focus on your voice.
Small but powerful
Its small size and minimal weight make Mic Air discreet, while its advanced audio recording capabilities take your sound quality to the next level.
Sound that impresses

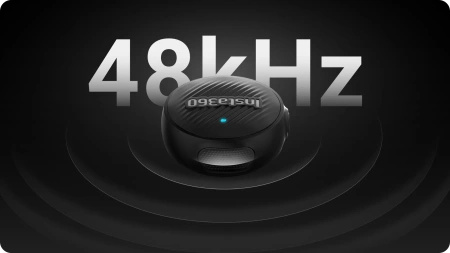

With 48 kHz sampling and omnidirectional audio capture, Mic Air records every detail – from the quietest whisper to dynamic speech.
Perfect in any conditions
Built-in noise reduction and a windscreen ensure clear audio even in challenging environments – outdoors, in crowds, or while recording on the move.
No receiver needed
Mic Air connects directly with Insta360 X5, X4, and Ace Pro 2 cameras. No receiver required – just pair and start recording. Support for more models will come with updates.
Easy control

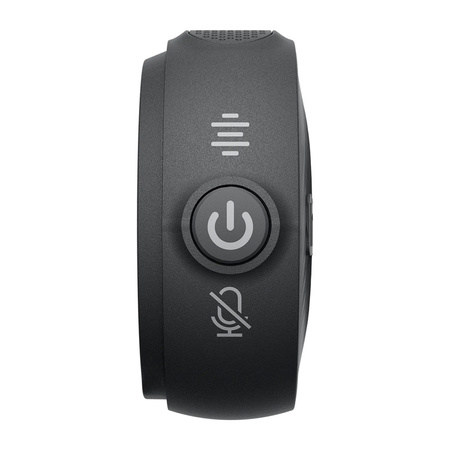

Recording, muting, or enabling noise reduction are available directly on the transmitter. This way, you can stay focused on your shot – not the settings.
Create without limits
Up to 10 hours of transmitter runtime and a range of up to 300 meters (with receiver) give you creative freedom in every situation – live streaming, traveling, or long vlogging sessions.
Flexible mounting

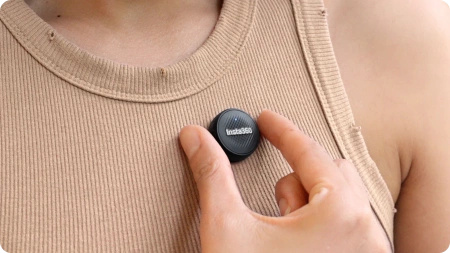

Included accessories allow you to mount the microphone with a magnet, clip, or pendant. Perfect for vlogs, interviews, and street recordings.
In the Box
What’s Included
Insta360 Mic Air Transmitter (TX)
- 1× Transmitter
- 1× Charging Base (USB-C dock)
- 1× USB-C Cable
- 1× Wind Muff
- 1× Magnet Clip
- 1× Clip Mount
- 1× Lanyard
- 1× Carry Pouch / Case

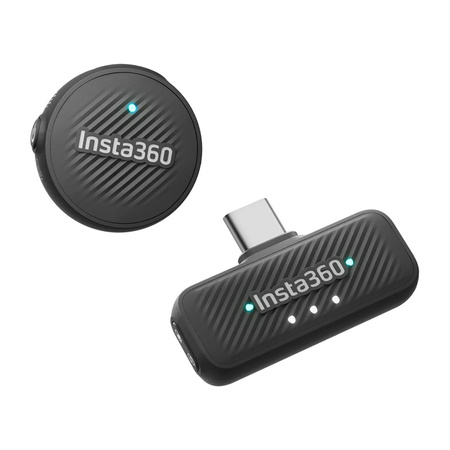

Insta360 Mic Air (TX + RX)
- 1× Transmitter
- 1× Receiver
- 1× Charging Base (USB-C dock)
- 1× USB-C Cable
- 1× Wind Muff
- 1× Magnet Clip
- 1× Clip Mount
- 1× Lanyard
- 1× Carry Case
Specs
Technical Specifications
Mic Air Transmitter (TX)
General
- Dimensions: 62.2 × 26.8 × 16.6 mm (approx.)
- Weight: ~17 g
- Power Consumption: 45 mA (typ.)
- Standby Power: 3.5 mA (typ.)
Wireless
- Operating Bands: 2.4 GHz / 5.1–5.8 GHz*
- Transmission Power (E.I.R.P.): up to 20 dBm (2.4 GHz), up to 14 dBm (5 GHz)
- Bluetooth® Range: up to 10 m (open area)
- 2.4 GHz Wireless Range: up to 50 m (open area)
Battery & Environment
- Battery: Li-ion rechargeable
- Charging Temperature: 0–45 °C
- Operating Temperature: −10–45 °C
*Frequency bands may vary by region.
Mic Air (TX + RX)
Receiver (RX)
- Standby Power Consumption: 3.5 mA (typ.)
- Wireless Frequency Range: 2.4 GHz / 5.1–5.8 GHz*
- Wireless Transmission Power (E.I.R.P.): 14–20 dBm (per band)
- Frequency Response: 20 Hz – 20 kHz
- Sampling Rate / Bit Depth: 24-bit
Battery & Environment
- Battery: Li-ion rechargeable
- Charging Temperature: 0–45 °C
- Operating Temperature: −10–45 °C
- Charging: via Charging Base or USB-C
*Available bands depend on local regulations.
How to Use
Quick Start
Mic Air Transmitter (TX)
- First-time use: Press and hold the power button to enter pairing mode. The indicator will flash.
- Pairing: In the Insta360 app select “Add Mic Air”. Once successful, the indicator will stay solid.
- Connecting: The transmitter can connect via Bluetooth or 2.4 GHz depending on your device. Reduce distance and interference for stable audio.
- Auto reconnect: When powered on, the transmitter reconnects to the last device.
- Charging: Place the transmitter into the charging base or connect via USB-C. Ensure charging contacts are aligned.
Mic Air (TX + RX)

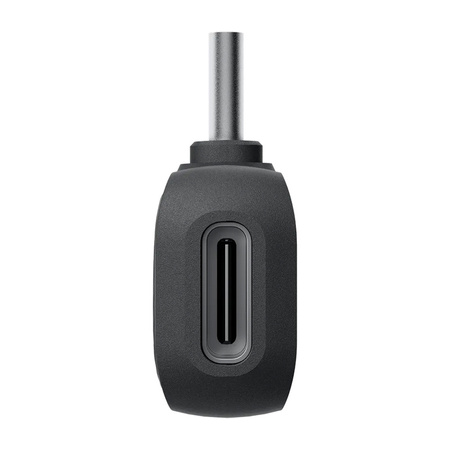

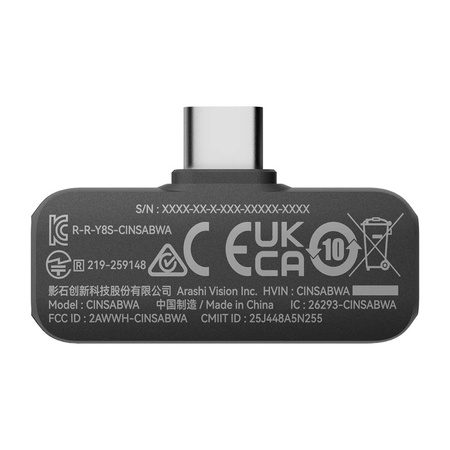

Connecting via USB-C Receiver
- Insert the receiver into your phone or camera’s USB-C port. Ensure a secure connection.

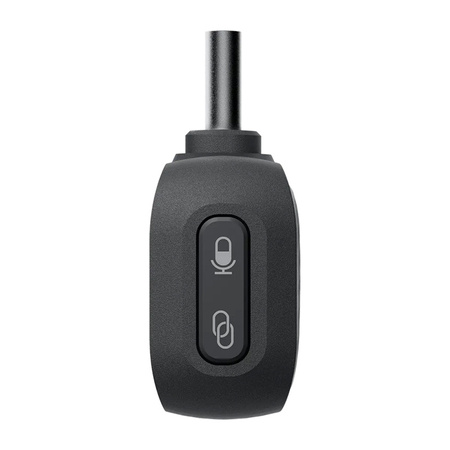

- Turn on both TX and RX. Hold the pairing button on RX (2s), then press pairing on TX. Indicators will turn solid when paired.
- Check audio monitoring levels. Adjust sensitivity if needed.
- To switch devices, unplug RX and repeat pairing.
- Charge via the Charging Base or USB-C cable.
Connecting TX to Insta360 via Bluetooth
- Press and hold the TX power button to enter pairing mode (indicator flashing).
- On your Insta360 camera or app, select “Add Mic Air (Bluetooth)” and choose the transmitter.
- For best performance, stay within 10 m and avoid interference.
- Press the shutter/record button on the camera to start recording with audio.
- On restart, the transmitter reconnects automatically to the last paired device.
*5 GHz bands may be restricted in some regions. Follow local regulations.
Brand
Entity responsible for this product in the EU
Insta360 GmbHMore
ProducerArashi Vision Inc.Address:
Jinlitong Financial Center Bao'an District 11th Floor/Building 2Postal code: 518100City: ShenzenCountry: ChinaE-mail: service@insta360.com
Responsible entityInsta360 GmbHAddress:
Gartenfelder Str. 29-37Postal code: 13599City: BerlinCountry: GermanyE-mail: service@insta360.com
Symbol
Insta360 Mic Air (1 TX + 1 RX)
Producer code
6977644763414
Producer
Insta360
Power Dissipation
45.5 mW
Pobór mocy w trybie czuwania
38.5 uW
Zakres częstotliwości bezprzewodowej
2.402 GHz~2.480 GHz
Moc transmisji bezprzewodowej (E.I.R.P.)
<10 dBm
Zakres częstotliwości Bluetooth
2.402 GHz~2.480 GHz
Moc transmisji Bluetooth (E.I.R.P.)
<10 dBm
Zakres częstotliwości
20 Hz~20 kHz
Częstotliwość próbkowania/głębokość bitów
48 kHz/24 bit
Akumulator transmitera
3.87 V, 97 mAh, 0.37539 Wh
Zakres temperatury ładowania
0°C do 45°C
Zakres temperatury pracy
-10°C do 45°C
Ładowanie podczas pracy
Odbiornik obsługuje ładowanie przelotowe po podłączeniu do urządzenia z portem USB-C
Compatibility
Insta360 Ace Pro 2
Insta360 Flow
Insta360 Flow Pro
Insta360 Flow 2 Series
Insta360 Flow 2 Pro
Insta360 GO Ultra
Insta360 X4
Insta360 X4 Air
Insta360 X4 BMW Motorrad
Insta360 X5
